ETW-PR-340 Digital Torque Wrench PRO Model
Price: $ 735.00
Ranges from 10 N-m to 2000 N-m
Price$699. up to $3,195.
| Digital Torque Wrench |

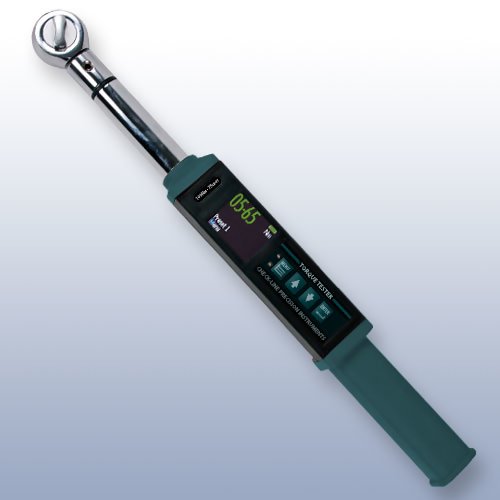

The ETW is precision torque measuring wrench for use in lab or production environments. |
 Features
 Bi-Directional Accuracy better than 1% |
| Robust Bi-Directional Ratchet Head |

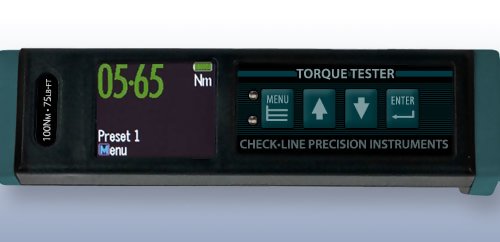

| Large Color OLED Screen.High Visibility, Warning Signals |
| Ergonomic Soft Grip for comfort |
|
| Battery Life of over 180 hours |
| Traceable Calibration Certificate Included |
| 2 Year Warranty |
| PR & SP Models include USB output & data transfer / analysis software |
|
| Feature Comparison Chart |
EZ |
PR |
SP |
| Peak Measurement Mode |
- |
 |
|
| Memory (2000+ Measurements) |
- |
|
|
| USB Output, Software & Cable |
- |
|
|
| SPC & PLC Output |
- |
- |
|
| 99 Programmable Presets |
- |
- |
|
| Multiplelanguages |
- |
- |
|
| Calibration Reminder; by date or # of measurements |
- |
- |
|
|
Photo Gallery - click any photo to enlarge
Torque Ranges
| Model |
Range |
Std Drive |
ETW-10 |
1 - 10 N-m |
1/4" |
ETW-20 |
2 - 20 N-m |
1/4" |
ETW-50 |
5 - 50 N-m |
3/8" |
ETW-100 |
10 - 100 N-m |
3/8" |
ETW-135 |
13.5 - 135 N-m |
3/8" |
ETW-150 |
15 - 150 N-m |
1/2" |
ETW-200 |
20 - 200 N-m |
1/2" |
ETW-250 |
25 - 250 N-m |
1/2" |
ETW-300 |
30 - 300 N-m |
1/2" |
ETW-340 |
34 - 340 N-m |
1/2" |
ETW-600 |
60 - 600 N-m |
3/4" |
ETW-800 |
80 - 800 N-m |
3/4" |
ETW-1000 |
100 - 1000 N-m |
3/4" |
| |
Alternative Unit Calculator- recasts values in above table
(units in RED can be selected on gauge. Other units for reference only) |
Specifications
| Accuracy |
CW - ±1%
CCW - ±1%
10 - 100% of capacity (readings start at 2%) |
| Resolution |
0.01 N-m / 0.1 in-lb / 0.01 ft-lb |
| Sampling Frequency |
500 Hz (500 samples/sec) |
| Display Update Rate |
4 Hz (4 times/sec) |
| Memory |
2000+ readings |
| Operation Mode |

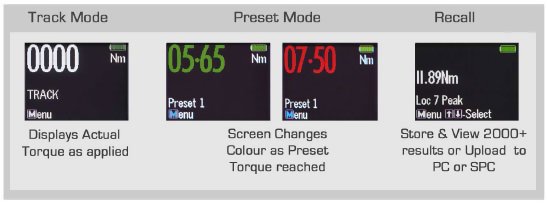

Peak hold/ Track /Preset |
| Unit Selection |
Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in |
| Length |
400mm (Ranges 10 - 135)
625mm (Ranges 150 - 340) |
| Head Type |
Robust Bi-Directional Ratchet |
| Battery |
4x AA |
| Battery Life |
180 Hours |
| Operating Temperature |
-10°C ~ 60°C |
| Storage Temperature |
-20°C ~ 70°C |
| Humidity |
Up to 90% non-condensing |
| Warranty |
2 Year |
