DTW-265i Electronic Torque Wrench, Capacity 265 in-lb / 30 N-m, Drive Size 1/4 in



Price: $ 199.00

DTW Electronic Torque Wrench
Digital Torque Wrench
1/4" 3/8" or 1/2" Drive
Capacity: up to 250.0 lbf-ft

4 Models
DTW-265i
- 265 in-lb / 30 N-m - 1/4" Drive
DTW-1200i - 1200 in-lb / 145 N-m - 3/8" Drive
DTW-100f - 100 ft-lb / 145 N-m - 1/2" Drive
DTW-250f - 250 ft-lb / 340 N-m - 1/2" Drive

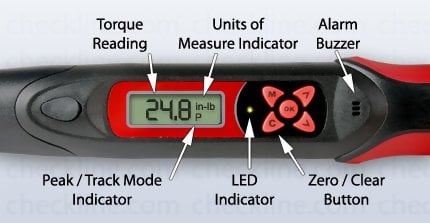

The new DTW Electronic Torque Wrenches are designed for simple and precise measurement of industrial, automotive, aerospace and many other applications. The DTW displays Real-Time and Peak torque on a large LCD display in ft-lb, in-lb or N-m, user selectable.

The DTW features High-Lo set points that indicate a desired torque value with a bright LED and audible beep.

Torque Wrench

line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ

line
Features
line

  • Displays in-lb, N-m, Kg-cm and ft-lb units (User selectable)
  • CW and CCW operation
  • Peak or Real-Time (track) mode (User Selectable)
  • Programmable Target Set-point with audible and visual indicators

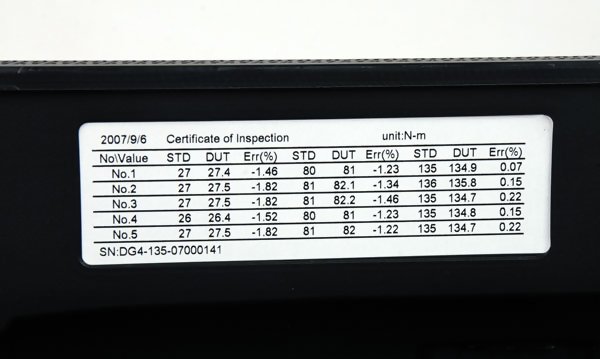

  • Includes Calibration Certificate
  • CE Certified

line
Force Ranges
line

ModelCapacityResolution
DTW-265i26.5 - 265 Lb-in1/4"
DTW-1200i120 - 1200 Lb-in3/8"
DTW-100f10 - 100 Lb-ft1/2"
DTW-250f25 - 250 Lb-ft1/2"


lineSpecificationsline

AccuracyCW - 2.5%
CCW - 3.5%
Memory50 Readings
Operation ModePeak hold/ Track
Unit Selectionft-lb, in-lb, N-m
LengthDTW-265i - 390 mm
DTW-1200i - 415 mm
DTW-100f - 445 mm
DTW-250f - 650 mm
Head TypeLever type Ratchet
Gear Teeth36
Battery2x AA
Battery Life110 Continuous Hours
1 Year Standby
Operating Temperature-10C ~ 60C
Storage Temperature-20C ~ 70C
HumidityUp to 90% non-condensing


lineRelated Productsline

DS
Dial Torque Wrench

  • Exclusive built-in ratchet mechanism
  • Standard double-ended spindle ratchet mechanism allows for left handed torque applications
related

line
Downloads
line

DTW Electronic Torque Wrench - Calibration Certificate
DTW Electronic Torque Wrench - Instruction Manual
